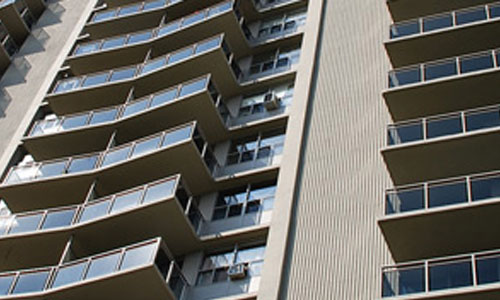

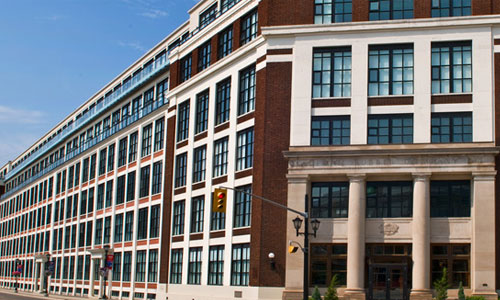

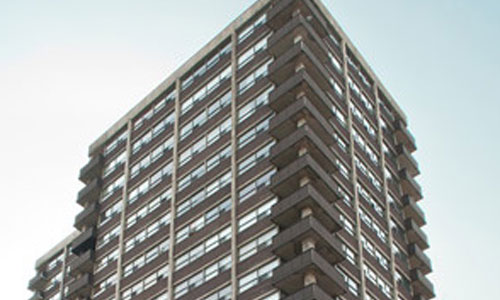

Aluminum Window Series 6000

Our Series 6000 is CSA-A440-00 “Windows” and AAMA/WDMA/CSA 101/I.S.2/A440- 08 “NAFS North American Fenestration Standard” to meet the latest requirements of the Ontario Building Code and National Building Code. Full test reports available upon request. Our series 6000 is available in virtually any colour and finish.

The frames have a depth of 4 5/8” (5” available) and are constructed of 6063-T6 aluminum alloy. The nominal material wall thickness for the frame is .062”. The sill height is increased to allow for better water drainage. Corners are fastened with screws and sealed.

The sash consists of aluminum profiles with .062” nominal material wall thickness of 6063-T6 alloy. Corners are fastened with screws and sealed. Cam sash design and continuous interlock at the sash meeting rail offer superior weathering and structural performance. OPTIONAL interior thermal sliders available.

The exterior set of sash is weather-stripped with pile weather stripping. The interior set of sash is weather-stripped with fin weather stripping.

Half screens are inserted within the window frame assembly. The mesh screens are standard in fibreglass. Aluminum mesh isavailable upon request.

Head, jamb and sills are thermally broken using the latest in thermal breaks. A vinyl thermal break is inserted between the interior and exterior extrusion and then mechanically crimped. New ISO Bar is also available to provide higher thermal and structural performance.

Spring loaded lock at sash meeting rail locks window into place. The sash glides on steel ball bearing rollers over a raised sill track ensuring smooth operation and minimizing the effects of debris and dirt build up on the sill.

Thermal glass units are glazed with Tremco Polyshim II glazing tape. Windows are inside glazed with an extruded vinyl stop. Extruded aluminum stop available upon request. Standard glazing is 15/16” sealed insulated glass, or upgrade to Low-E coated glass and argon gas for greater energy performance and condensation resistance in cold climates. Glass can also be supplied colour tinted or reflective to meet all custom architectural specifications.

Examples

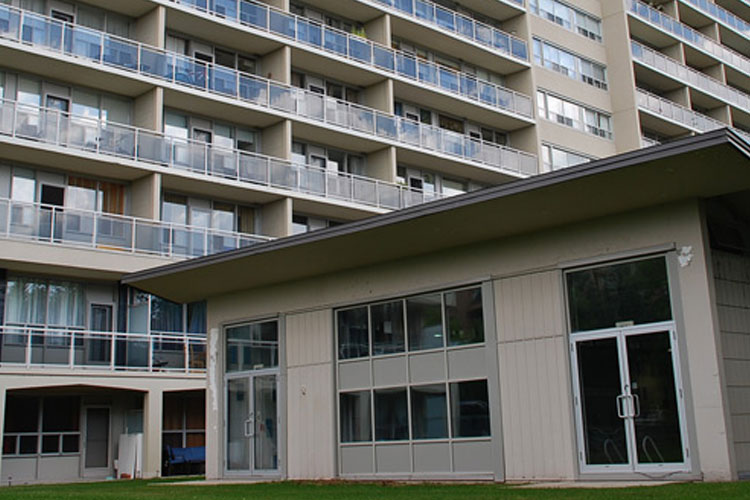

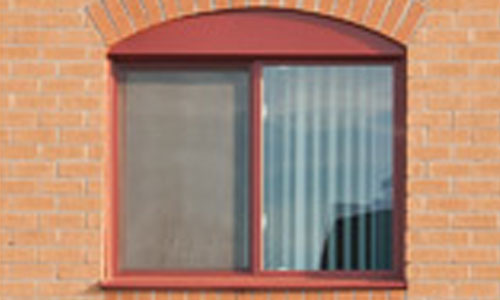

Vinyl Window Series 1500

Our Series 1500 have been created to offer high performance, energy efficient windows, all with a lifetime warranty on the frame and sash material, hardware and insulating glass.These windows have been made to meet the most modern requirements of CSA testing and are available to meet the most rigorous requirements of the ENERGY STAR program in all regions of Canada.

Norstar Casement Windows 100M

Casement Window Ratings
CAN/CSA A440 F2, A3, B7,C5
Energy Rating of +28* • U value .28 with SHGC .26*
Meets CSA Requirements • Window Wise Approved
AAMA/WDMA/CSA101/1.5.2/A440-05 C-C55 FER10
NFRC Certified • ENERGY STAR Qualified

100M Premium Casement Widths: 12” - 36” Heights: 16” - 76”
14” Height Minimum with single point Lock

Maximum with Triple or Keepsafe
Widths: 28” Heights: 66”
* Tested with Low E, Argon Gas and a warm edge spacer

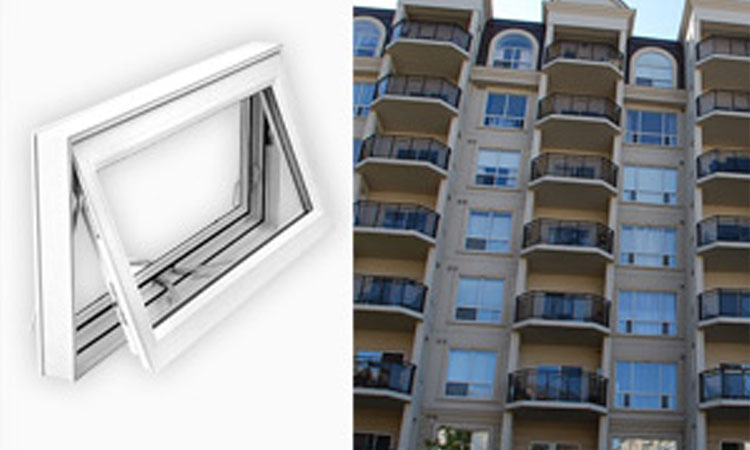

Norstar Awning Windows 150M

Awning Window Ratings
CAN/CSA A440 F2, A3, B7,C5
Energy Rating of +28* • U value .28 with SHGC .26*
Meets CSA Requirements • Window Wise Approved
AAMA/WDMA/CSA101/1.5.2/A440-05 C-C55 FER10
NFRC Certified • ENERGY STAR Qualified

150M Premium Awning Widths: 19 3/4” - 48” Heights: 16” - 48”
14” Height Minimum with single point Lock

Maximum with Triple or Keepsafe
Widths: 28” Heights: 66”
* Tested with Low E, Argon Gas and a warm edge spacer

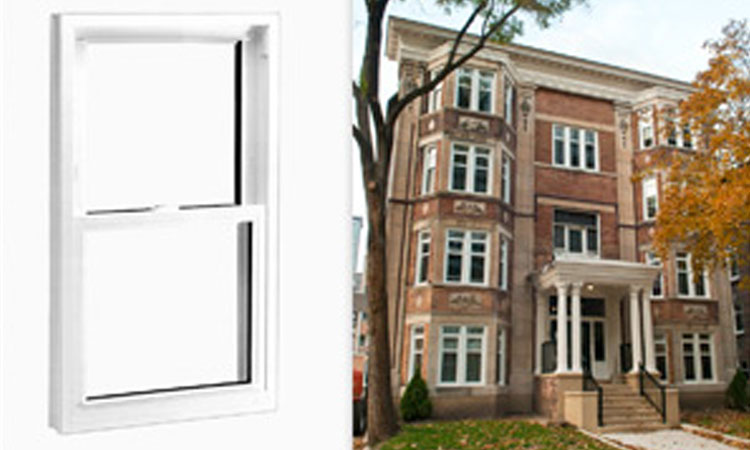

Norstar Double-Single Hung 210C/201VS

Double Hung Window Ratings
CSA A440-00: A3, B7, C3, F10, S1
AAMA/NWWDA 101/I.S.2-97 (DH-R*40 FER20)
Energy Rating of +29* • U value of 0.29*
(Triple glazed with Low E and Krypton Gas and a warm edge spacer)
Meets CSA Requirements • Energy Star Qualified • Window Wise Certified

Single Hung Window Ratings AAMA/WDMA/CSA101 I.S.2/A440-05 - H-C55** FER10
CSA A440-00: A3/Fixed, B3, C3, F10, S1
Energy Rating of +31* • U value 0.28*
Meets CSA Requirements • NFRC Certified • Energy Star Qualified
AAMA Certified • Window Wise Certified
* Tested with Low E, Argon Gas and a warm edge spacer

Maximum with Triple or Keepsafe
Widths: 28” Heights: 66”

Norstar Double-Single Slider 300

Double Slider Window Ratings
CSA A440 - M98 - A2, B3, C3, F20, S1
Energy Rating: +28* • U Value: 0.29*
ENERGY STAR Qualified • Window Wise Certified

Single Slider Window Ratings CCSA A440 - M98 - A3/Fixed, B2, C3, F10, S2
Energy Star Rating of +31* • U value 0.28*
Meets CSA Requirements • NFRC Certified
Energy Star Qualified • Window Wise Certified
* Tested with Low E, Argon Gas and a warm edge spacer

300 Double Slider Size Limitations
Widths: 22” - 72” Heights: 12” - 50”

Combination Units
Widths: 54” maximum

Triple or Keepsafe Glass
Maximum size is 18 sq. ft.

301VS/301VSJ Single Tilt Slider
Widths: 18” - 72” Heighst: 12” - 50”
Note: If Height is between 12” and 13”, width can be no less than 22”
Maximum size with Triple Glass or Keepsafe is 18 sq. ft.
