Aluminum Sliding Patio Doors Series 1200
Our Series 1200 meets the CAN/CGSB 82.1-M89 “Sliding Glass Door”. Doors can be configured up to 6 panels wide in the same perimeter frame in any combination of fixed and operable panels. Transoms and sidelites are also available to complete the design. Our Series 1200 is available in virtually any colour.

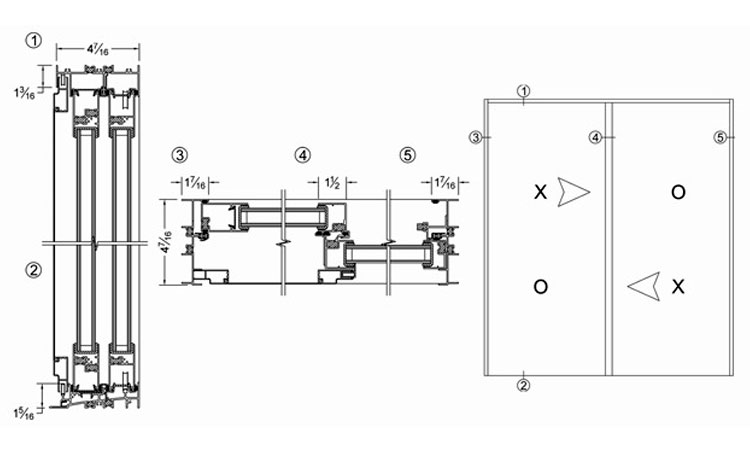

The frames have a depth of 4 ½” and are constructed of 6063-T6 aluminum alloy. The nominal material wall thickness for the frame is .062”. Mill finish sill is standard but available in clear anodized finish.
The sash/slider is a double structural thermal barrier in all framing sections minimizes heat flow and condensation and eliminates the thermal bridging that occurs in single thermal break products.
Adjustable screen rollers in the top and bottom of the screen frame provide smooth operation of the screen without tipping or binding. The screen interlocks with the door panel to create seamless protection against insects. The mesh screens are standard in fibreglass. Aluminum mesh is available upon request.
A range of fully adjustable lock sets and handles are available to satisfy all tastes and budgets. For added protection optional security bars, key locks and anti-lift blocks are available. Doors roll quietly and smoothly on adjustable tandem steel ball bearing rollers. Panels are independently adjustable to achieve the utmost in ease of operation and protection against the elements.
Standard glazing is 1” clear tempered sealed insulated glass, or upgrade to Low-E coated glass and argon gas for greater energy performance and condensation resistance in cold climates. Glass can also be supplied colour tinted or reflective to meet all custom architectural specifications.

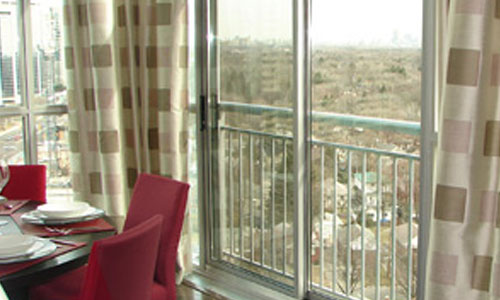

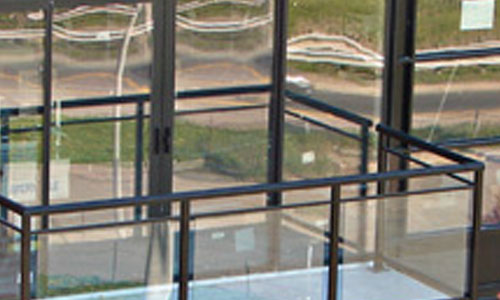

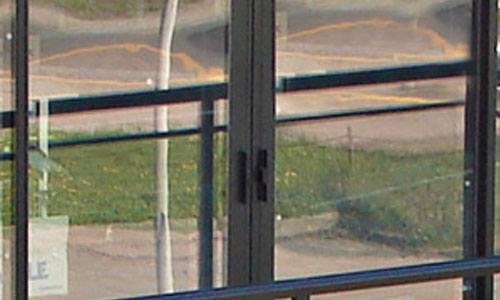

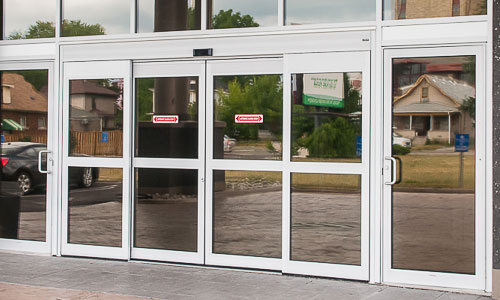

Examples
Steel Insulated Doors Series 100
Our Series 1000 meets the CAN/CGSB 82.5-M88 “Swing Door” standard. Our Series 1000 combines a thermally-broken aluminum frame with a steel-insulated door slab. This maintenance-free product offers optimum energy and cost efficiency. Our Series 1000 is available in virtually any colour.

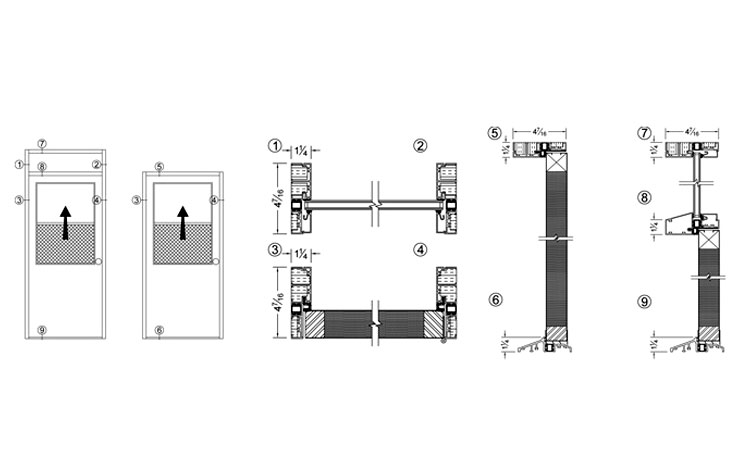

The aluminum frame is 4 5/8” deep with the exterior section separated from the interior section with a vinyl extruded thermal break. The frames are constructed of 6063-T6 aluminum alloy. The nominal material wall thickness for the frame is .062”. Mill finish sill is standard but available in clear anodized finish.
Door panels are constructed of factory primed white, hot-dipped galvanized 24-guage steel surface permanently bonded to a rigid injection polyurethane core and crimped around grooved wood stiles and rails. The 1 3/4” panels has an R Value of 14.6.
Transoms are manufactured using a continuous jamb and may incorporate a sealed insulated thermal unit or insulated metal panel.
A variety of vinyl-frame glass inserts can be incorporated into the door slab. These glass inserts are available in various sizes including full, three quarters and half lites. The lites/inserts can also be operable or fixed.

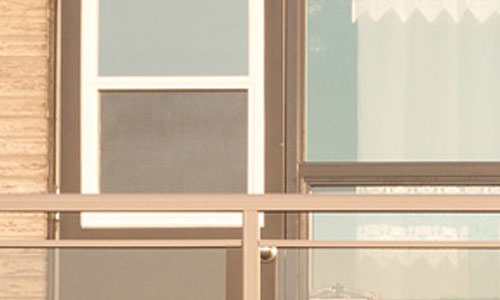

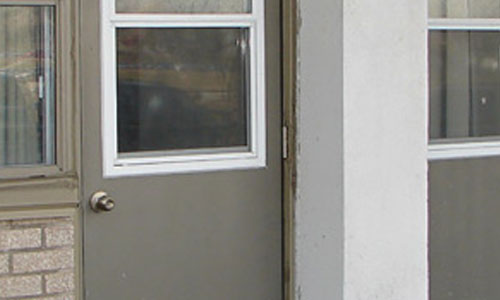

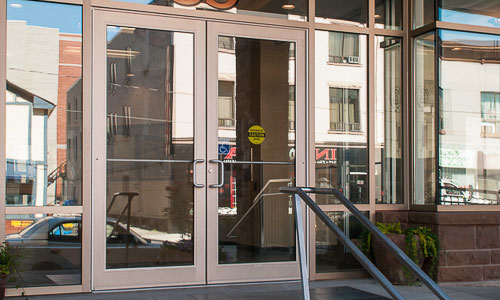

Examples
