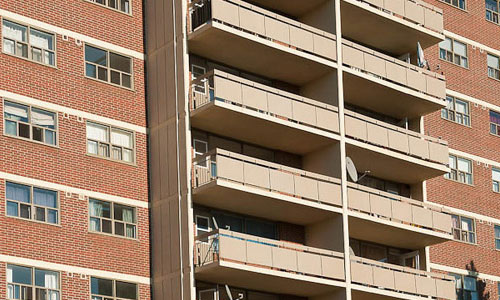

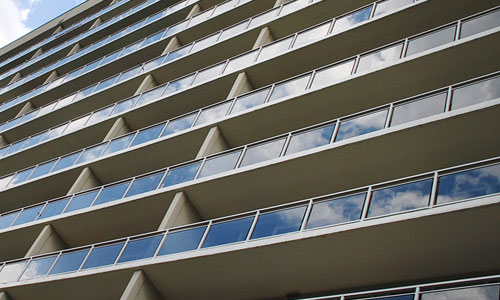

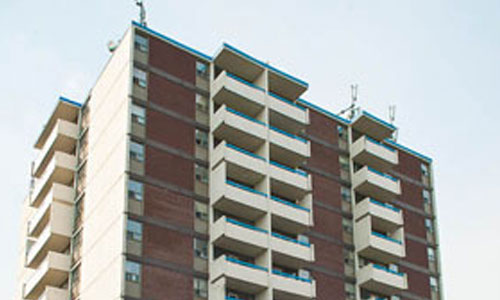

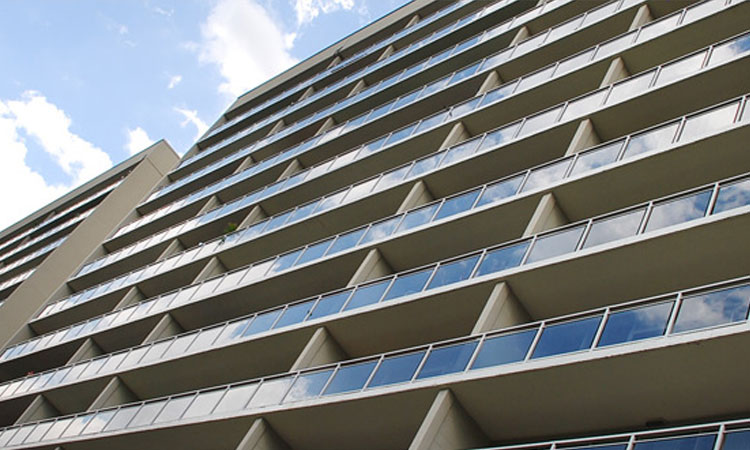

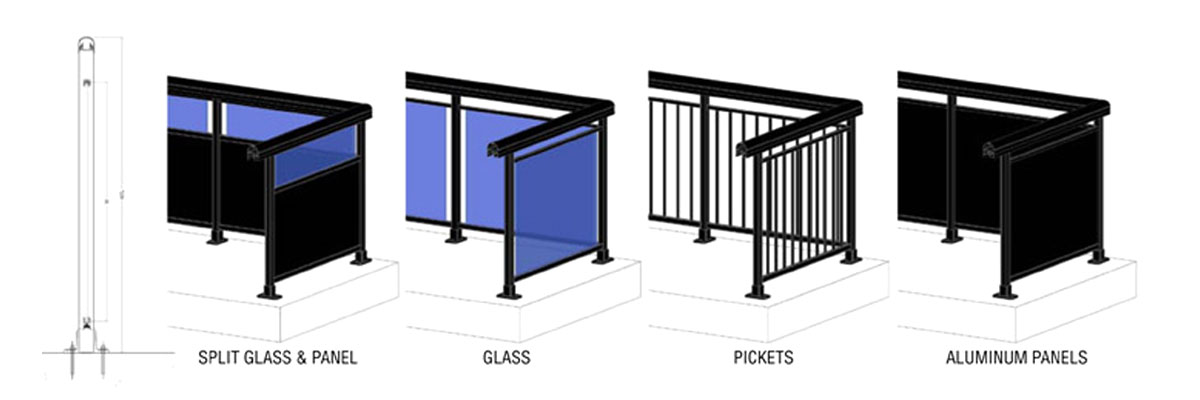

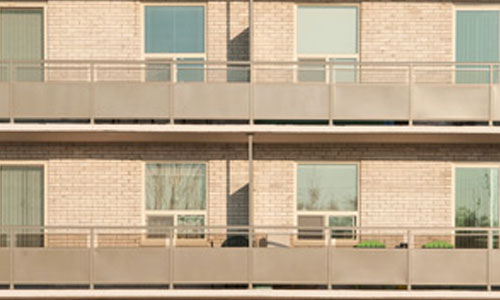

Our Series 7500 railings meet the Ontario Building Code (OBC), 2006 Edition 220.127.116.11 (1). Manufacturing and installation of guardrails and their components shall be in accordance with the engineer shop drawings provided on the project. All railings are custom fabricated for each project to meet the project specifications.
Extruded aluminum posts are 6005-T6 alloy. All other members are 6063-T6 alloy. Expansion anchors are stainless steel with epoxy adhesive. All exposed and hidden fasteners are stainless steel.
Colour (Glass & Aluminum) to be selected by the client. The finish is polyester powder coated electrostatically applied and baked to AAMA-2605 specification.
All glass is 6mm (1/4”) tempered in compliance with CAN/CGSB-12.1-M90.
