Entrances and Framing
Custom Entrances and Framing Series 1450 + 25000

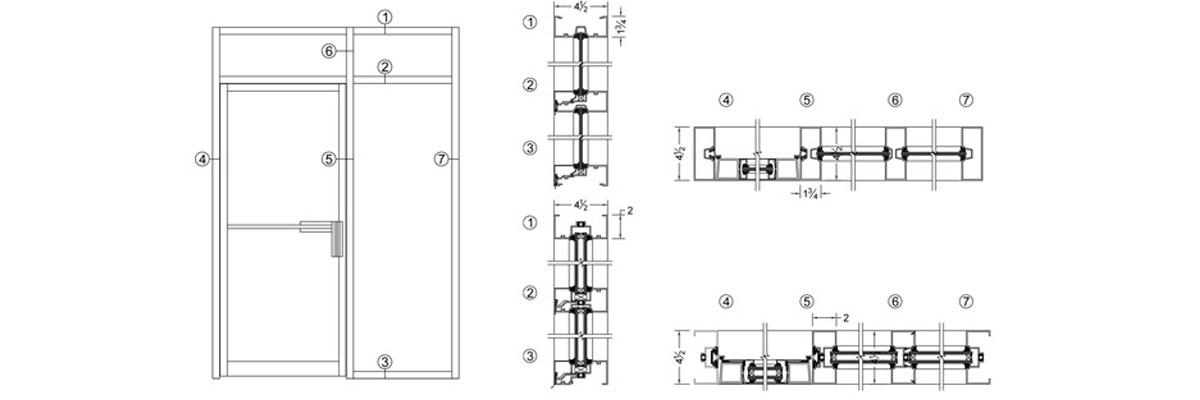

Our Series 2500 is a 4 1/2” deep frame extruded in 6063-T6 alloy, thermally broken. Our Series 1450 is a 4 1/2” deep frame extruded in 6063-T6 alloy, non-thermally broken..
Extruded welded aluminum profiles are installed into either the 2500 or 1450 series framing in either our standard “Narrow”, “Medium” or “Wide” style doors. Various options on hardware are available.
Standard glazing is 1” clear sealed insulated glass, or upgrade to Low-E coated glass and argon gas for greater energy performance and condensation resistance in cold climates. Glass can also be colour tinted or reflective to meet all custom architectural specifications.
Anodic Oxide Treatments (#17 clear anodized standard) are in accordance with AAMA designations. Our series 1450 & 2500 are available in virtually any colour and finish.

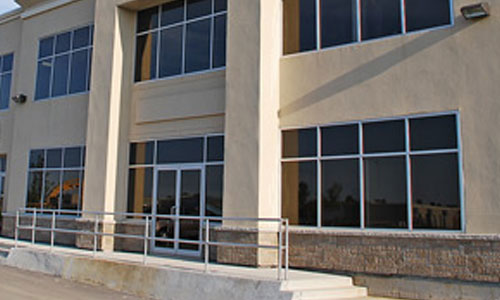

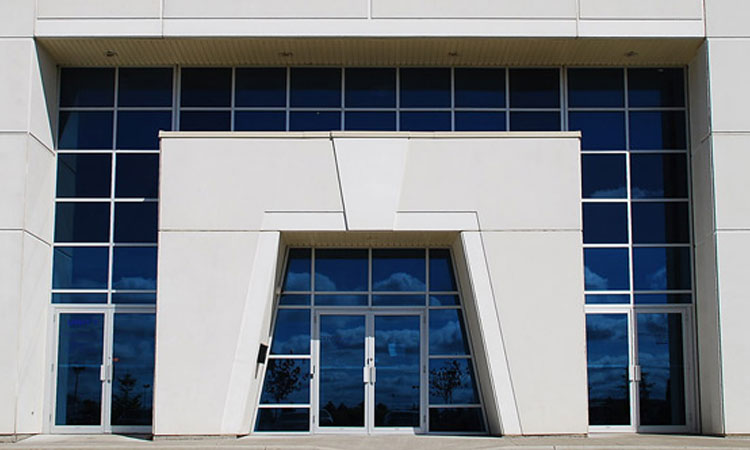

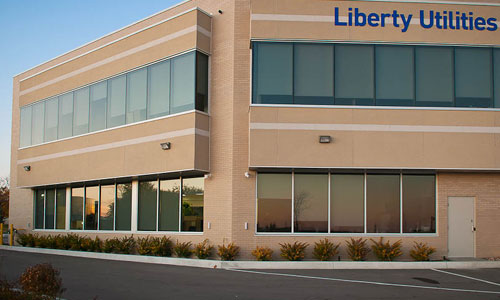

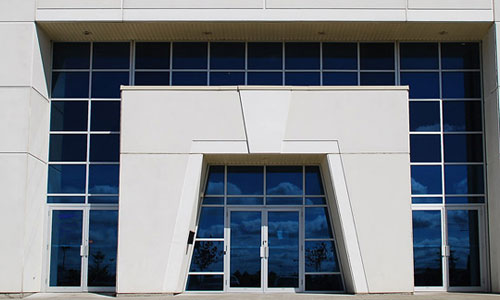

Examples
